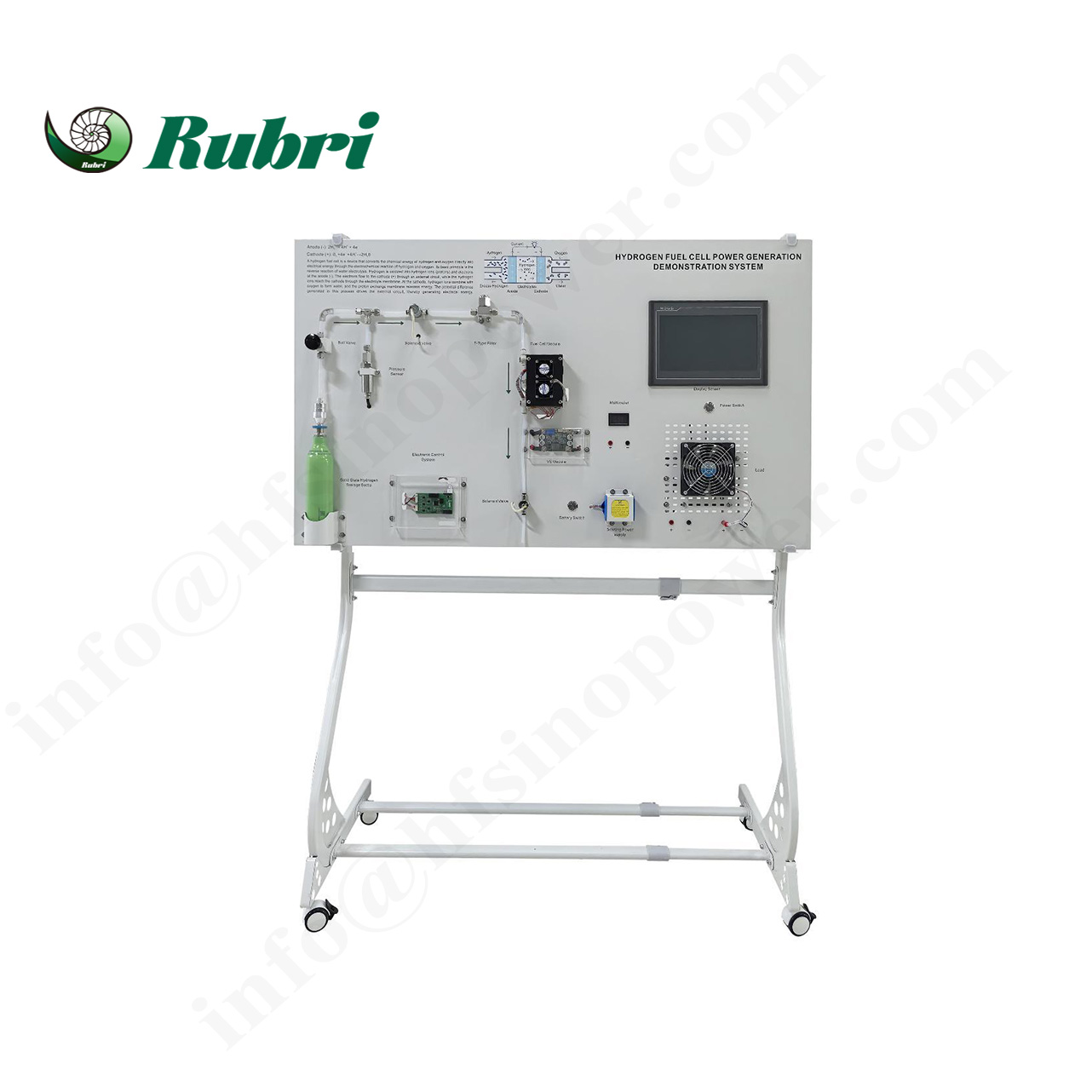

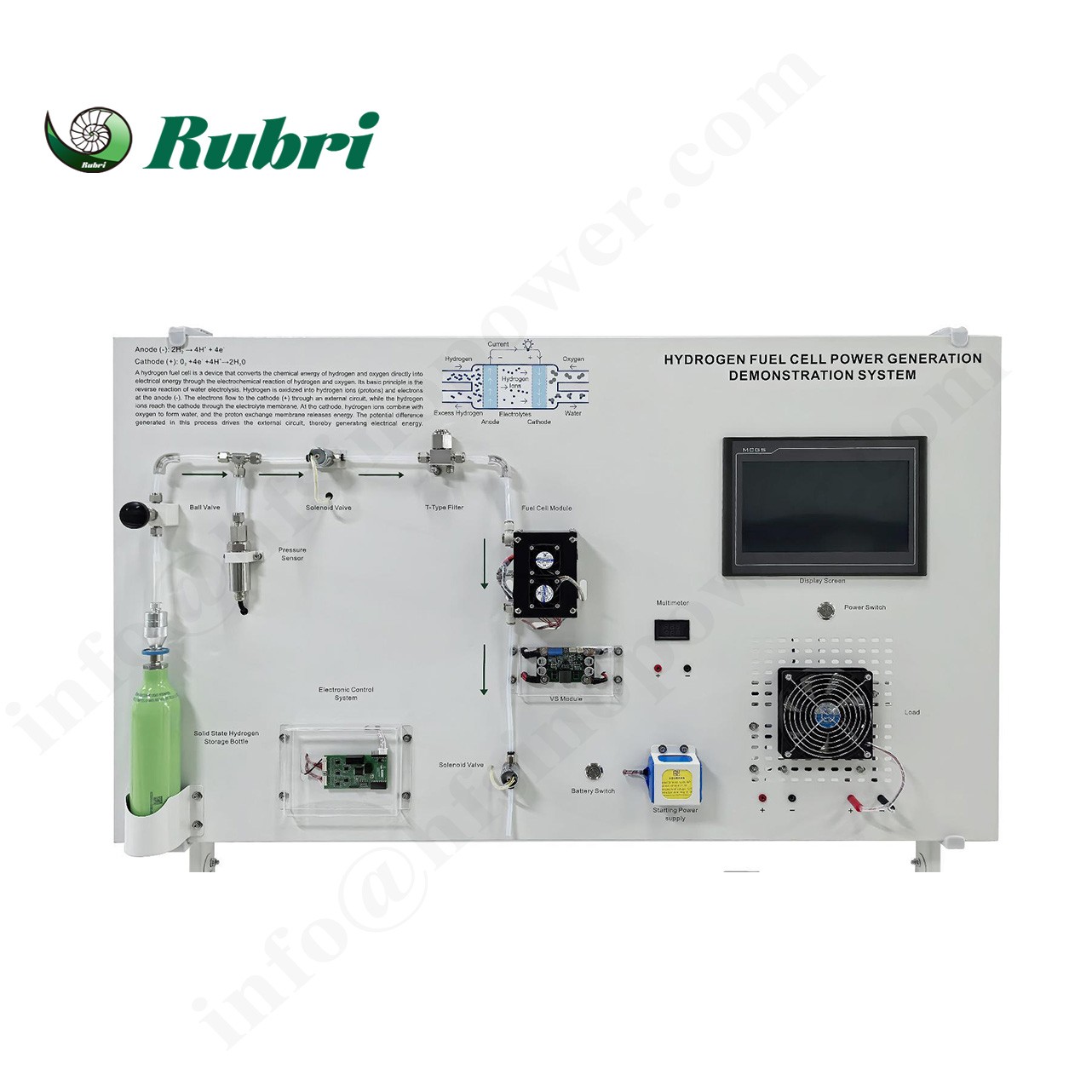

This system is a full-process teaching demonstration device for hydrogen fuel cell power generation designed for colleges and vocational schools. It integrates metal hydride hydrogen storage, fuel cell power generation, power management and load application modules, and fully demonstrates the core technology of hydrogen energy conversion into electrical energy. The system is based on proton exchange membrane fuel cell (PEMFC) technology, combined with low-pressure metal hydride hydrogen storage and intelligent monitoring system. It is safe and reliable, and is suitable for experimental teaching and scientific research exploration in new energy, chemical engineering, electrical automation and other disciplines.
Product Description
Hydrogen Fuel Cell Teaching Aids
| Hydrogen Fuel Cell Power Generation Demonstration System |
|||||
| Category | Parameter Name | Unit | Parameter | ||
| Metal Hydride Hydrogen Storage Tank |
Diameter | mm | 60 | ||
| Height | mm | 258 | |||
| Weight | kg | 1.5 | |||
| Storage Capacity | g | >20 | |||
| Filling Pressure | Mpa | 1.0 | |||
| Continuous Hydrogen Desorption Pressure |
Mpa | 0.6 | |||
| Hydrogen Release Rate | L/min | >4 | |||
| Fuel Cell | Rated Voltage | V | 19.8 | ||
| Rated Current | A | 10.2 | |||
| Hydrogen Inlet Pressure | MPa | 0.035~0.05 | |||
| Hydrogen Purity | % | ≥99.99 | |||
| Hydrogen Consumption | L/min | 2.89 @rated power | |||
| Stack Weight | kg | 1.43 | |||
Los dispositivos de enseñanza de pilas de combustible de hidrógeno ayudan a cultivar el espíritu cooperativo de los estudiantes, guiándolos para mejorar la capacidad práctica, cultivando la alfabetización científica, la innovación y las habilidades para resolver problemas.
LEER MÁS
Investigue el rendimiento de las reacciones, la reducción y la oxidación, y otros conceptos químicos mediante la realización de reacciones de electrólisis. Material didáctico.
LEER MÁS
This system is a full-process teaching demonstration device for hydrogen fuel cell power generation designed for colleges and vocational schools. It integrates metal hydride hydrogen storage, fuel cell power generation, power management and load application modules, and fully demonstrates the core technology of hydrogen energy conversion into electrical energy. The system is based on proton exchange membrane fuel cell (PEMFC) technology, combined with low-pressure metal hydride hydrogen storage and intelligent monitoring system. It is safe and reliable, and is suitable for experimental teaching and scientific research exploration in new energy, chemical engineering, electrical automation and other disciplines.
LEER MÁS
